| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | RedFarm |
| Certification: | CE RoHS ETL FCC |
| Model Number: | G1 QUANTUM650 |
| Minimum Order Quantity: | 1 |
| Price: | USD1-200/unit |
| Packaging Details: | 1pcs/ctn |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS/Per Month |
| Product Name: | Quantum Board 650W Led Grow Light | LED: | SAMSUNG LM301B / OSRAM IR /SEOUL UV |
|---|---|---|---|
| Driver: | UL Driver-7Years Warranty | Dimming: | PWM / 0-10V |
| Spectra: | Full Spectrum | Material: | Aluminum |
| Light Source: | LED | Input Voltage(v): | 100-277Vac |
| IP Rating: | IP65 | Working Temperature(℃): | -20-40℃ |
| Color Temperature(cct): | Full Spectrum | Power: | 650W |
| Application: | Vegetable Flower Fruit Greenhouse Grow Lights | Warranty: | 3 Years |
| High Light: | Quantum Board LED Grow Light 650W,Quantum Board 650W Led Grow Light,IP65 LM301B Grow Light |
||

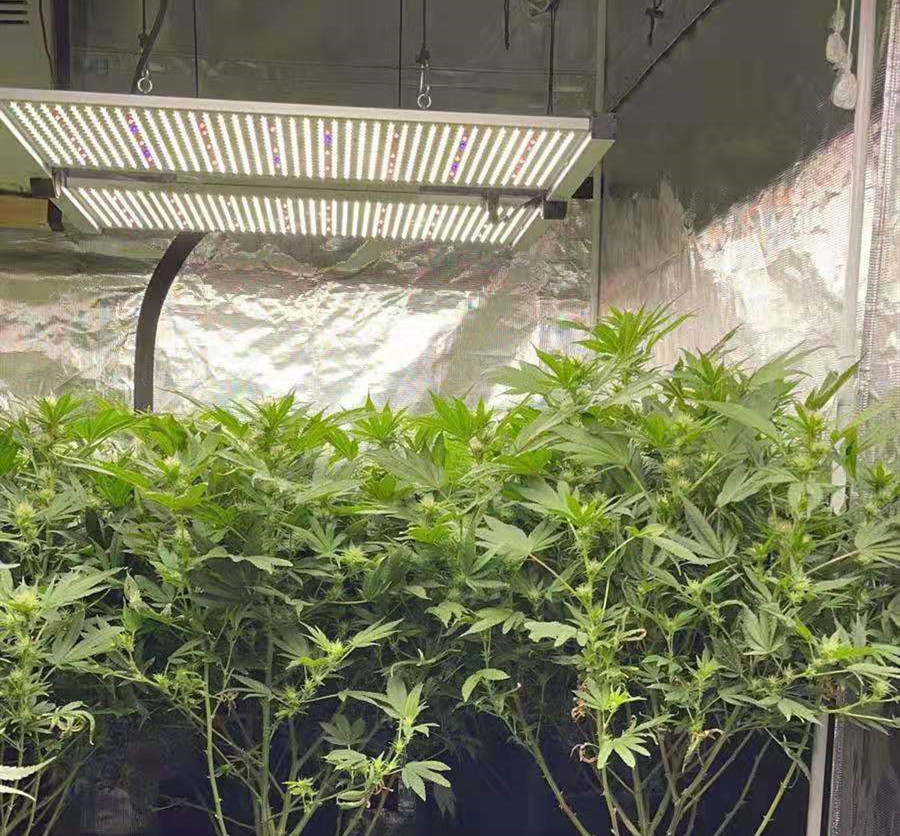

RedFarm 650W Samsung LM301B Quantum Board Led Grow Light Full Spectrum Osram 660nm 730nm Seoul UV 395nm-FullSpec UV IR
The RedFarm G1 QUANTUM650 can easily replace a 1000W HID lamp. The dimmable unit withdraws a wattage range from 0 to 650 watts and can deliver upto 1755 umol/s of light. The LED delivers an efficacy of 2.7umol/J. The LED emits dispersed light, allowing better canopy penetration and providing equal distribution of essential spectrum light without damaging the plant.
SPECIFICATION
| Name | Quantum Board LED Grow Light | Model | G1 Quantum650 |
| Power | 650 Watt | Input Voltage | 100-277V AC |
| LED | Samsung Osram Seoul | Driver | UL Listed |
| PPF | 1755 µmol/s | PPE @ 277 AC | 2.7 µmol/J |
| Daisy Chain | Yes | Dimming | 0-100% |
| Heat Output | 1584 BTU / hours | Lifespan | 50000 hours |
| Dimension(mm) | 800(L)*744(W)*32(H) | N.W.(KGS) | 9.0KGS |
| Package (mm) | 860(L)*520(W)*140(H) | G.W.(KGS) | 11.0KGS |
| Hanging Height | 12”-36” Above Plants | Application | Hydroponics,Grow Tents |
Dimmable Driver:The lights are highly efficient and can be dimmed according to the requirement of the plantation type. You can adjust the lighting by 1%.
Samsung LM301H LED: The LED emits a full-spectrum light with 3000K 4000K 6500K color temperature, ideal for flowering and vegging purposes.
Diffused Light: With diffused light, the corners of the plantation, and in the absence of the light concentration, the plants do not get damaged.
Passive Cooling: The LED grow system cools down using the thermodynamics of conduction, so no unnecessary electricity is wasted and helps save on electricity bills.
The Quantum grow light uses 2 QB 301B quantum board designed by RedFarm and Samsung. The board uses Osram 660nm deep red, Osram 730nm IR,Seoul UV 395nm and LM301H 3500K diodes. The board's efficiency is improved with the high temperature and double the number of diodes on the board.
It has been designed to replace a 800W double-ended grow light and emits 30% more with HLG 550 light. The Quantum Light stands as one of the most powerful fixtures today in the market.
The grow light board can be used commercially and for home grows. With the ETL certification and 3-year warranty, you can stay completely assured about your investment.
Using the dimmer to adjust the grow light intensity is recommended for vegetative growth and cranking the light intensity for flowering purposes. The total light emission of the grow light is reported at 1755 umol/s and efficacy of 2.7 umol/J, which is an impressive number.
The LED must be installed 24-36 inches above the canopy for application. Anywhere closer than this may end up burning the plants as the light output is too high.
The fixture is ideal for a 4 X 4 area but can also be used for a 5 X 5 area. The LED provides light to a 6’ X 6’ vegetative area and 4’ X 4’ flower area. Hang the fixture at a distance of 24’’ for flower and hang the fixture at a distance of 48’’ to facilitate vegetative growth.
The grow light is recommended for supporting the full-growing cycle from seedling to flowering. It is ideal for soil, aeroponic, aquaponic, grow tent and hydroponic systems.
Spectrum Chart:
ALL ON
WHITE+RED ON
UV IR ON
Specifications:
SKU/Model NO.: G1 Quantum650
Wattage Draw: 0-650 watts (dimmable)
HID equivalent: 1000 watt double-ended HID fixture
LEDs: Top-Bin Samsung LM301BH ; Top-Bin Osram 660nm Deep Red ,730nm Infrared.Seoul UV 395nm
PPF: 1755 umol/s
PAR efficacy: 2.7 umol/J
Coverage area: Veg: 6' x 6'; Flower: 4' x 4'
Mounting Height
Flower: 24" (at full intensity)
Veg: 48" (at full intensity)
Thermal management: Passive cooling
Driver: UL Driver-7years Warranty
Dimmable: Yes
Net Weight: 9.0 KGS
Dimensions: 31.5" x 29.3" x 1.26"
Operating/input voltage: 100-277VAC; 50Hz-60Hz
Amperage: 5.42A @ 120V; 2.71A @ 240V
BTUs: 2145 BTU/hr
Finish: Aluminum
Certifications: ETL (Conforms to UL Std 1598; Certified to CSA Std C22.2#250.0)
Warranty:3-years
Product includes:
Fixture with 120V or 240V US cord and plug
Dimmable driver (0- 100% intensity)
Hangers
Recommended for:
Grow tents
Grow rooms
Large indoor grows
Commercial grows
Vegetative growth and/or flowering
Full-cycle growing from seedling to flower
Soil, hydroponic, aeroponic, or aquaponic systems
